After pile foundations are poured, the top portion of each pile — called the pile head — needs to be removed to expose the steel reinforcement for the next construction phase. Traditionally, workers used pneumatic picks and manual jackhammers to chip away the concrete. This method was slow, damaged the internal steel bars, created massive noise and dust, and often required rework when supervisors found cracked or uneven pile surfaces.
A YG pile breaker solves all of these problems. It’s a hydraulic attachment that mounts on an excavator and uses multiple synchronized hydraulic cylinders to apply uniform pressure around the pile body. The concrete cracks cleanly along a controlled fracture surface, while the internal steel reinforcement remains completely undamaged.
The two most common types are the square hydraulic pile breaker and the round pile breaker. YG Machinery will tell you how to select. Want to learn more? Contact YG now!
- Square Pile Breaker vs. Round Pile Breaker — What’s the Real Difference?
- How to Choose: Square or Round Pile Breaker?
- 1: Residential or Commercial Building Foundations → Square Pile Breaker
- 2: Highway Bridges, Viaducts, and Large Infrastructure → Round Pile Breaker
- 3: Projects with Multiple Pile Diameters → Round Pile Breaker (with Interchangeable Jaws)
- 4: Dense Pile Groups with Narrow Spacing → Claw Type (Bonus Option)
- 5: Quick Decision Summary
- Want a customized solution? Choose YG as Your Pile Breaker Supplier
Square Pile Breaker vs. Round Pile Breaker — What’s the Real Difference?
Both types serve the same fundamental purpose: breaking off pile heads cleanly and protecting the internal rebar. But their structural design, applicable pile shapes, and ideal use cases are completely different.
| Comparison Item | Square Pile Breaker | Round Pile Breaker |
|---|---|---|
| Frame structure | Square closed rigid frame | Annular circular ring frame |
| Hydraulic cylinder layout | Evenly distributed on 4 sides | Circumferentially distributed along the ring |
| Force application method | Synchronous inward squeeze on 4 flat faces | Centripetal inward squeeze along the curved circumference |
| Applicable pile shape | Square reinforced concrete piles | Circular bored piles, rotary drilling piles, pipe piles |
| Typical pile diameter range | 400–600mm (YG-160/180) | 600–2500mm (YG-800 to YG-2500) |
| Module quantity | 4 | 8–18 (scales with pile diameter) |
| Breaking force | 60–80T | 60–80T |
| Machine weight | 1,600–1,990 kg | 2,526–6,300 kg |
| Excavator compatibility | 20–30T | 20–40T |
| Adjustability | Fixed to square pile size | Interchangeable inner jaw assemblies for different diameters |
| Best suited for | Building foundations, underground garages, residential/commercial projects | Highway bridges, viaducts, municipal infrastructure, large-diameter bored piles |
| Operation speed | Fast for standard building pile sizes | Scales with pile diameter; larger piles take more cycles |
How to Choose: Square or Round Pile Breaker?
1: Residential or Commercial Building Foundations → Square Pile Breaker

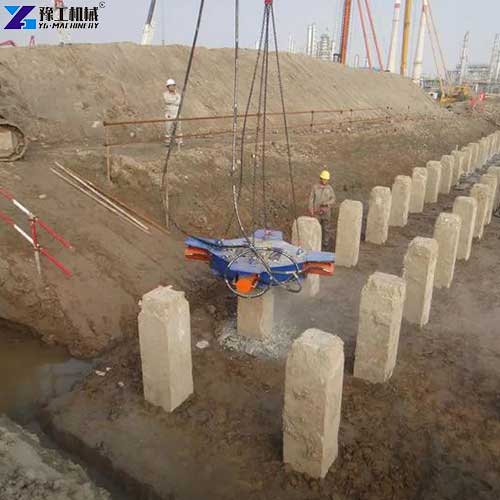

Most residential and commercial buildings use square precast concrete piles. These piles are mass-produced in standard sizes (400mm, 500mm, 600mm) and driven into the ground using pile drivers. A square hydraulic pile breaker is specifically engineered for this exact application.

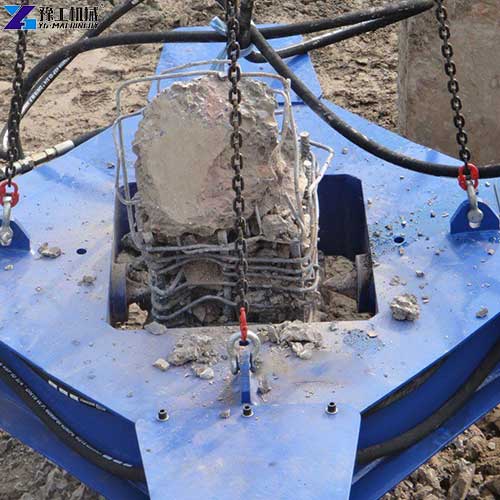

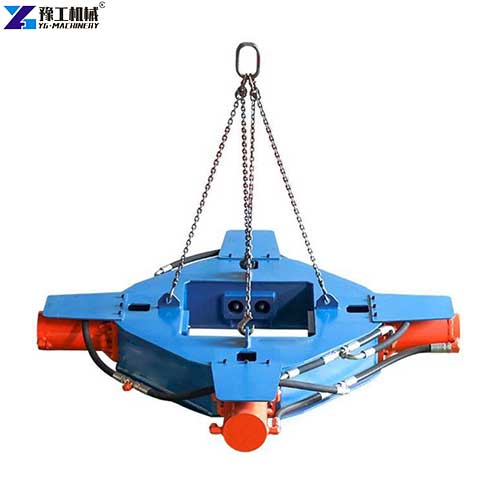

The four-sided frame matches the square pile geometry perfectly. When all four hydraulic jaws close simultaneously, the concrete cracks uniformly along the horizontal fracture plane. The result is a flat, clean pile head with undamaged vertical rebar — exactly what structural engineers require.
For a building contractor working on multiple residential projects with standard square piles, a square pile breaker in the square configuration is the most efficient and cost-effective choice.
2: Highway Bridges, Viaducts, and Large Infrastructure → Round Pile Breaker

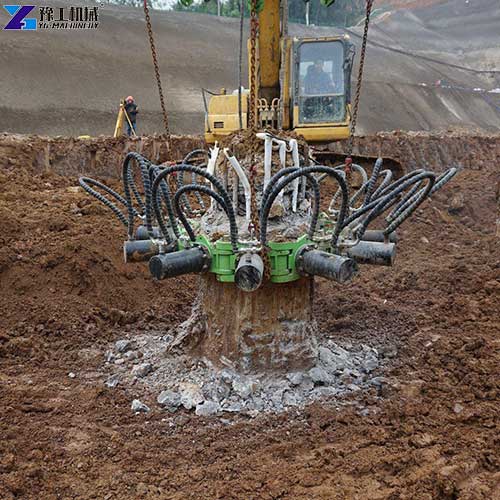

Bridge piers and large infrastructure projects almost exclusively use circular bored piles (also called drilled shafts or caisson piles). These piles can range from 600mm to over 2,500mm in diameter. A square breaker simply cannot handle a round pile — the force distribution would be uneven, causing local stress concentrations and potential pile damage.

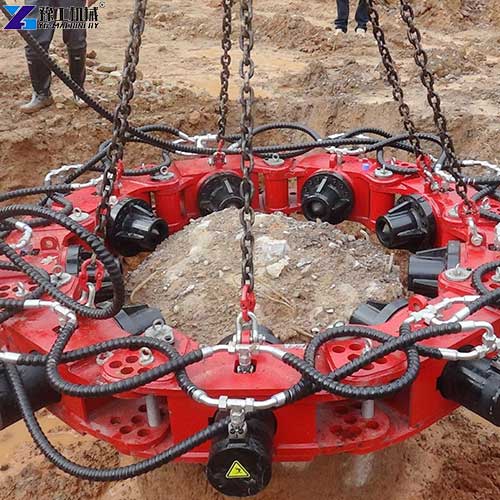

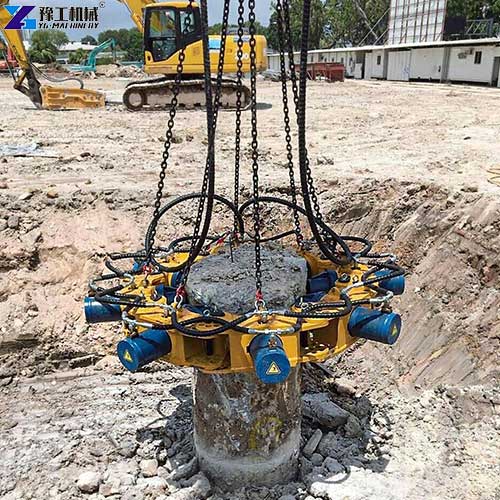

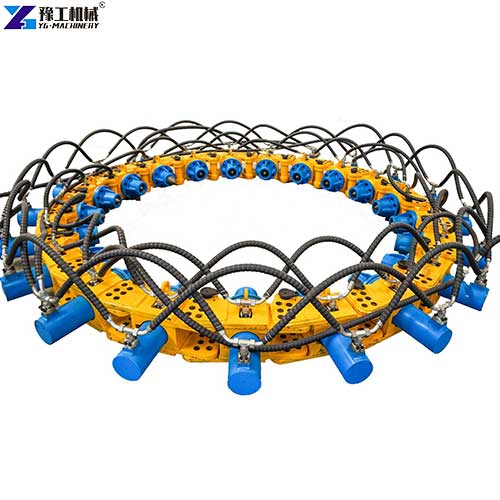

A round pile breaker’s annular ring frame wraps perfectly around the circular pile. With 8 to 18 hydraulic cylinders distributed circumferentially, the inward force is uniform across the entire pile circumference. The concrete peels off in clean sections along the ring, leaving the central rebar cage intact.
For highway contractors, bridge builders, and municipal infrastructure companies, the round pile breaker machine is the standard tool.
3: Projects with Multiple Pile Diameters → Round Pile Breaker (with Interchangeable Jaws)
If your project involves round piles of varying diameters — for example, a bridge project with 800mm approach-span piles and 1,500mm main-span piles — you need a round breaker with interchangeable inner jaw assemblies. YG’s round pile breakers support diameter adjustments by swapping jaw modules, meaning one machine can handle multiple pile sizes on the same project.
4: Dense Pile Groups with Narrow Spacing → Claw Type (Bonus Option)
Neither the integral square frame nor the integral round ring can fit into tightly spaced pile groups. When pile spacing is less than 1.5x the pile diameter, an integral frame breaker cannot be lowered onto the pile head from above. In this scenario, the claw-type pile breaker — with its open-side clamping design — is the solution. It approaches the pile from the side, making it ideal for crowded foundation pits.
5: Quick Decision Summary
| Your Situation | Recommended Type |
|---|---|
| Square precast piles (buildings, garages) | Square hydraulic pile breaker |
| Round bored piles (bridges, highways) | Round pile breaker |
| Large-diameter round piles (>1,000mm) | Round pile breaker (higher tonnage model) |
| Multiple round pile diameters on one project | Round pile breaker with interchangeable jaws |
| Dense pile groups, narrow spacing | Claw-type pile breaker |
| Mixed square and round piles | Consider both square and round YG pile breaker units |
Want a customized solution? Choose YG as Your Pile Breaker Supplier
YG Machinery manufactures all three types of pile breakers — square, round, and claw — giving you the flexibility to choose the exact right tool for your project rather than forcing one machine to do everything.
What YG offers:
- Full product range: Square models (YG-160, YG-180), round models (YG-800 to YG-2500 in both 160 and 180 series), and claw-type models (400, 500, 650)
- Excavator matching guidance: YG’s technical team recommends the correct breaker model based on your excavator tonnage, ensuring optimal hydraulic flow and structural compatibility
- Interchangeable jaw system: Round pile breakers support diameter changes by swapping inner jaw assemblies — one machine, multiple pile sizes
- Wear-resistant components: Hydraulic cylinders, jaw teeth, and frame structures are built from high-strength materials for long service life in demanding foundation environments
- Fast delivery: Standard models ship within 15–20 days; custom diameter configurations available on request
- After-sales support: English-language operation manuals, video installation guidance, and responsive technical support
Whether you’re breaking square piles for a residential complex or round bored piles for a highway viaduct, a YG pile breaker delivers clean, precise pile head removal that protects your structural reinforcement and passes inspection every time.
Contact YG Machinery today with your pile type, pile diameter, and excavator model — and we’ll recommend the exact hydraulic pile breaker configuration for your project.
