A crawler DTH drilling machine is also called a DTH trolley or open-pit DTH trolley. Crawler DTH drilling machines are divided into two types: split-type (wheeled air compressor + DTH trolley) and integrated type (with its own air compressor). They are widely used in blasting hole drilling and underwater drilling/blasting of reefs in open-pit projects such as metallurgy, mining, building materials, railways, hydropower construction, national defense construction, and earthwork. Crawler DTH drilling machines are easy and quick to relocate and highly efficient. If you have any needs, please feel free to contact YG.
Get 12-Month Warranty & 24/7 Technical Support – Learn More
Get 12-Month Warranty & 24/7 Technical Support – Learn More
YG Crawler DTH Drilling Machine Parameters
| Main Specifications | YG 412B-1 | YG 416T-1 | YG 420B-1 | YG 420TA-1 |
| Feeding method | Hydraulic cylinder + chain | Hydraulic cylinder + chain | Hydraulic cylinder + chain | Hydraulic cylinder + chain |
| Feed total length | 4,600 mm | 5,500 mm | 5,500 mm | 5,880 mm |
| Feed extension | 800 mm | 970 mm | 970 mm | 970 mm |
| Feed travel length | 2,680 mm | 3,670 mm | 3,670 mm | 3,670 mm |
| Feed force max. | 15 kN | 15 kN | 15 kN | 20 kN |
| Feed speed max. | 16 m/s | 26 m/s | 26 m/s | 30 m/s |
| Pullback force max. | 25 kN | 25 kN | 25 kN | 45 kN |
| Hole range | Φ90-115 mm | Φ90-115 mm | Φ90-127 mm | Φ90-138 mm |
| Optimum hole depth | 21 m | 21 m | 21 m | 21 m |
| Drill pipe | Φ60 mm × 2 m | Φ60 mm × 3 m | Φ76 mm × 3 m | Φ76 mm × 3 m |
| Hammer | 3.5″ | 3.5″ | 4″ | 4″ |
| Rotation torque | 1,650 N·m | 2,200 N·m | 2,200 N·m | 3,200 N·m |
| Rotation speed | 100-220 rpm | 0-150 rpm | 0-150 rpm | 60-110 rpm |
| Fuel tank capacity | 115 L | 70 L | 70 L | 70 L |
| Tramming speed max. | 2.5 km/h | 2.5 km/h | 2.5 km/h | 3 km/h |
| Gradeability max. | 25° | 25° | 25° | 25° |
| Ground clearance | 310 mm | 310 mm | 310 mm | 310 mm |
| Track frame oscillation angle | / | ±10° | ±10° | ±10° |
| Traction force max. | 40 kN | 40 kN | 40 kN | 54 kN |
| Weight (w/o Options) | 3,950 | 4,620 | 4,620 | 5,500 |
| Dimensions (L×W×H) | 4,450×2,080×2,460 mm | 5,700×2,130×2,300 mm | 5,700×2,130×2,300 mm | 5,600×2,308×2,500 mm |
| Dust Collection | exist | exist | exist | exist |
Get 12-Month Warranty & 24/7 Technical Support – Learn More
How Does the YG Crawler DTH Drilling Machine Work?
This crawler DTH drilling machine is a hybrid power type, combining compressed air as its power source. The drill bit’s rotation is powered by an electric motor, while the impact force of the impactor comes from compressed air. The electric motor’s working chamber converts electrical energy into rotational torque, which is transmitted to a reducer. This causes the drill rod, connected to the reducer’s output shaft, to rotate. The alloy teeth at the impactor’s front end continuously impact and break the rock. The broken rock is then blown to the ground by the compressed air pressure emanating from the drill bit’s exhaust port. The axial force generated by the propulsion cylinder feeds the air into the drill bit for drilling.

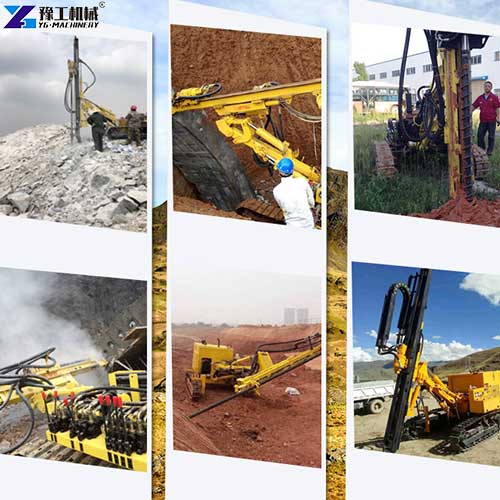

Where Can a Crawler DTH Drilling Rig Be Used? 8 Applications
A crawler DTH drilling machine is a versatile piece of heavy drilling equipment used across multiple industries. Here are its primary applications:
- Mining and open-pit quarrying: Drills blast holes in granite, limestone, basalt, and other hard rock formations for controlled blasting operations — the most common use case for any crawler DTH drilling rig for sale
- Metallurgy: Supports rock drilling in ore extraction and mineral processing operations, where precise blast hole patterns are required for efficient rock breaking
- Building materials production: Used in quarries that supply crushed stone, gravel, and aggregate for concrete and construction — drilling blast holes to extract raw rock material
- Railway construction: Drills blast holes for cutting through rock embankments and tunneling through mountainous terrain during railway route development
- Hydropower projects: Drills foundation holes and blast holes for dam construction, spillway excavation, and underground powerhouse development
- Earthwork and large-scale excavation: Handles bulk rock excavation for road cuts, building foundations, and site leveling in rocky terrain
- Defense and military construction: Supports hardened structure excavation, tunnel construction, and underground facility development requiring controlled rock blasting
- Underwater rock blasting and reef removal: Equipped with specialized drill bits and casing systems, a crawler DTH drilling machine can perform underwater blast hole drilling to remove rock reefs in harbors, channels, and coastal engineering projects
