An egg tray production machine is a type of paper pulp molding equipment. Although it is commonly called an egg tray machine, its original name is pulp molding equipment because it can use waste paper and water to produce many kinds of molded paper products.

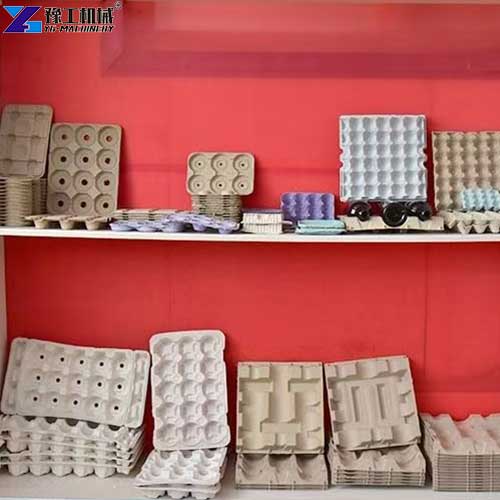

Egg trays are the most common products made by this equipment. Depending on the mold, the same production system can also manufacture egg boxes, fruit trays, coffee cup holders, bottle trays, food packaging, and industrial protective inserts.
The basic idea is simple: waste paper is mixed with water to make pulp, the pulp is shaped by a mold, extra water is removed, and the wet paper tray is dried. The egg tray production machine has three models. Want more information? Please contact YG at +86 139 3718 3205.

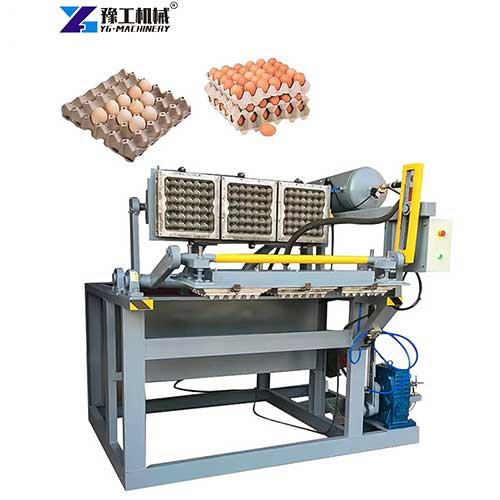

Flip Type Model
The flipping machine has a capacity of 1000-1500 pieces per hour and is suitable for small products such as egg trays and coffee cup holders, offering high cost-effectiveness.
Its simple structure and easy operation make it suitable for small to medium-scale production, with low investment costs and easy maintenance.

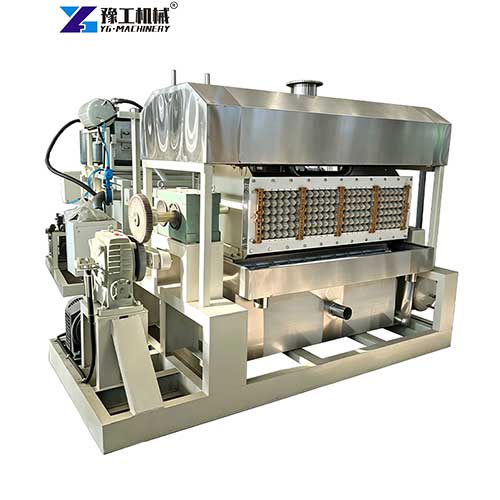

Rotary Drum Model
The rotary drum machine has a capacity of 2500-10000 pieces per hour, suitable for standard packaging pallets, offering high capacity and stable operation.
Utilizing a continuous forming process, it boasts high production efficiency, uniform product quality, and is suitable for large-scale production. Suitable for packaging products not exceeding 8 cm in diameter.

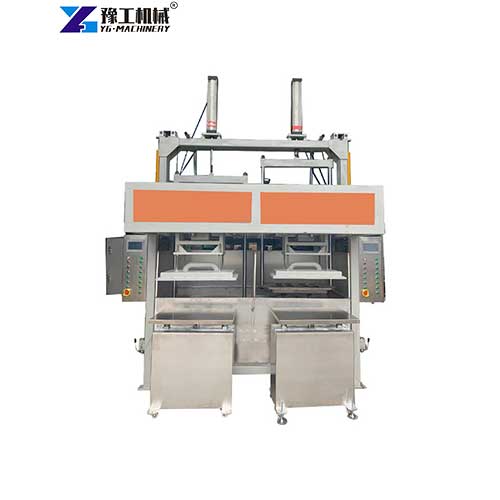

Reciprocating Model
The reciprocating molding machine has a capacity of 1000-2000 pieces per hour and is suitable for highly flexible products such as industrial liners.
It features multi-functionality and strong adaptability, and can be customized to meet special packaging requirements.
YG Egg Tray Production Machine Parameters
| Production Line Models | Output (p/h) | Hydraulic Pulper | Egg Tray Machine | Drying Method | |||
| Natural Drying | Brick Drying Line | Single-layer Metal Drying Line | Multilayer Metal Drying Line | ||||
| YGDT3×1-1000 | 1000 | ZDS1(1m³) | DTF3×1 | √ | √ | √ | √ |
| YGDT4×1-1500 | 1500 | ZDS1(1m³) | DTF4×1 | √ | √ | √ | √ |
| YGDT3×4-2000 | 2000 | ZDS1(1m³) | DT3×4 | √ | √ | √ | √ |
| YGDT4×4-2500 | 2500 | ZDS2(2m³) | DT4×4 | √ | √ | √ | √ |
| YGDT3×8-3000 | 3000 | ZDS2(2m³) | DT3×8 | √ | √ | √ | |
| YGDT4×8-4000 | 4000 | ZDS4(4m³) | DT4×8 | √ | √ | √ | |
| YGDT5×8-5000 | 5000 | ZDS4(4m³) | DT5×8 | √ | √ | √ | |
| YGDT5×12-6000 | 6000 | ZDS6(6m³) | DT5×12 | √ | √ | √ | |
| YGDT6×8-7000 | 6000-7000 | ZDS6(6m³) | DT6×8 | √ | √ | √ | |
The actual machine choice should be based on local egg demand, available space, raw material supply, labor, and drying conditions.
Click to Inquire about Detailed Information on the Egg Tray Production Machine

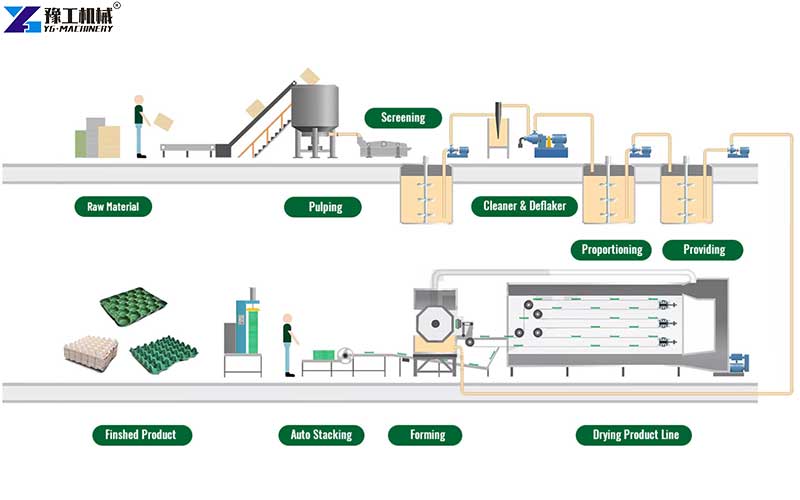

Working Principle of an Egg Tray Production Machine
The complete working process can be divided into three main parts:
- Pulp preparation
- Tray forming
- Drying and packing
Each part has a different function. A stable production line needs all three parts to work together. Want more information? Please get in touch with YG at +86 139 3718 3205.
4 Drying Methods For Egg Tray Production Machine
Freshly formed egg trays contain a large amount of water. They must be dried before packing and transportation.
The PPT introduces several drying methods.

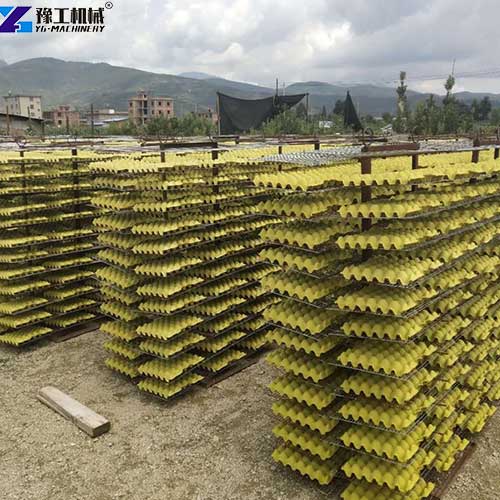

Natural Sun Drying
Natural drying places wet trays on trays or racks and moves them into an open area. Sunlight and natural wind remove the water.
Advantages:
- Low energy cost
- Simple operation
- Suitable for areas with strong sunlight
- Low initial investment

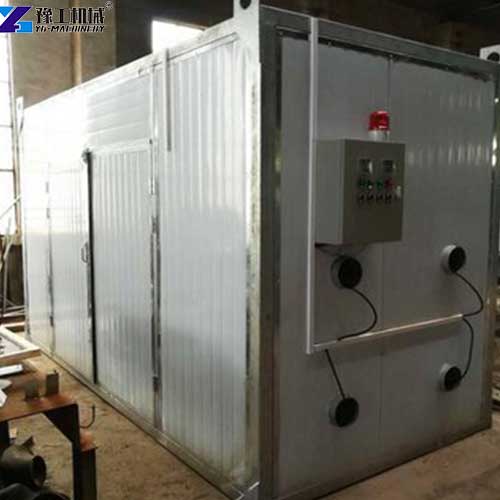

Drying Box
A drying box uses heated air to dry the trays. The wet trays are placed on small trolleys and moved into the drying box.
Advantages:
- Production can continue in rainy weather
- Smaller land requirement
- Easier to control than natural drying
Civil Construction Drying Tunnel
A drying tunnel uses a long drying passage. Wet trays enter from one side and come out dry from the other side.
The PPT gives a general drying temperature of about 180–200°C and a drying time of around 15 minutes. The tunnel length depends on the production capacity.
Possible fuels include:
- Coal
- Wood
- Natural gas
- Diesel
This method can support continuous production, but it needs more land because the drying tunnel is long.
Multi-Layer Metal Drying System
A multi-layer metal drying system uses several drying levels to save floor space.
Wet trays move through the drying room and are dried layer by layer. The PPT describes a drying temperature of about 180–200°C and a drying time of around 25 minutes.
Advantages:
- Smaller floor area
- Higher automation
- Better use of vertical space
- Suitable for medium and large production
The initial investment may be higher than natural drying, but it is more suitable for customers who need regular production throughout the year.
Click to Inquire about Detailed Information on the Egg Tray Production Machine

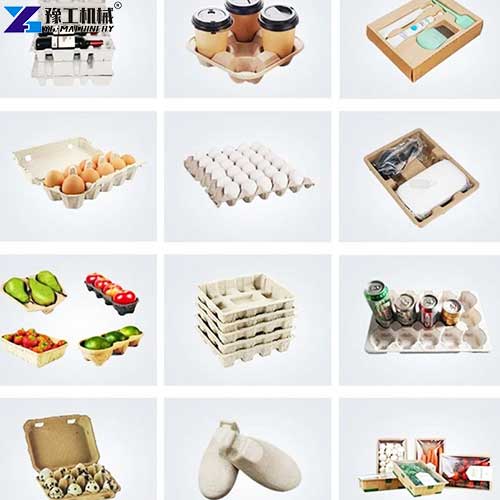

7 Applications of an Egg Tray Production Machine
An egg tray production machine is mainly used for egg packaging, but its applications are not limited to chicken eggs.
Click to Inquire about Detailed Information on the Egg Tray Production Machine
Customer Feedback about YG Egg Tray Production Machine
Customer Feedback From a Small Poultry Business
A small poultry business needed a more stable source of egg packaging. Before purchasing equipment, the business depended on outside suppliers and had to arrange tray deliveries according to its egg production schedule.
After choosing a small production system, the customer could prepare paper pulp from locally available waste paper and produce trays according to daily demand.
The customer appreciated the simple forming process and the flexibility of natural drying. For a small business, the ability to start with a lower-capacity machine and upgrade the drying system later was especially useful.
The customer’s main feedback was that the machine was suitable for businesses that wanted to control packaging supply without building a very large factory.
Customer Feedback From an Overseas Packaging Supplier
Another overseas customer operated a packaging business and wanted to expand from ordinary egg trays into fruit trays and other molded products.
The customer chose a larger forming system because the business needed higher output and more stable production. After discussing the mold and drying method with YG, the customer planned to use the equipment for egg trays first and consider other packaging products later.
The customer valued the fact that the equipment could be used for more than one product. The ability to change molds gave the business more options when local packaging demand changed.
These customer experiences show that machine selection should not depend only on hourly output. The buyer should also consider product type, drying method, factory space, and future expansion.
8 FAQ About YG Egg Tray Production Machine
A: The default molds for the egg tray machine are plastic. The suction mold is polycarbonate, and the transfer film is PP. Aluminum molds can be customized if you have specific requirements for the finished product.
A: Coal, natural gas, wood, etc.
A: Nothing is needed; the pulp fibers themselves hold together to form the pulp.
A: Egg trays, egg cartons, shoe trays, electrical or industrial packaging trays, baby bottle trays, apple trays, fruit trays, coffee cup trays, seed trays, etc.
A: Various waste papers, cardboard boxes, books, newspapers, etc.
A: No. There are no regional requirements regarding their size or moisture content.
A: Under good maintenance conditions, the lifespan of plastic molds is 5 years. The lifespan of the aluminum mold is 7 years.
A: Yes, usually 1 year.
Choose YG as Your Reliable Egg Tray Production Machine Supplier
Choosing the right equipment is important for stable production and long-term operating costs. YG can help you select the forming method, machine capacity, mold, auxiliary equipment, and drying solution according to your needs.
Whether you need a small system for a poultry farm or a larger line for a packaging business, YG can provide a practical solution.
Contact YG today to discuss your egg tray project, receive a suitable machine recommendation, and get a detailed quotation.
