Earthquakes in Colombia often destroy municipal water pipelines, leaving remote mountain communities without a safe drinking water supply. After seismic damage, large‑size heavy drilling trucks are frequently blocked by collapsed roads, landslides, and narrow mountain trails, making it impossible to reach isolated disaster zones. Local rescue and engineering teams are actively searching for reliable small well drilling rigs and checking small borewell machine prices to prepare mobile emergency water‑drilling capacity.
This real‑world customer story comes from an engineering service team working on post‑earthquake reconstruction projects in western Colombia. Facing urgent emergency‑water demands in mountain‑side villages cut off by landslides, the team purchased the YG‑240‑22P small well drilling machine. This small well drilling machine became their core tool for rapid emergency well construction. The small well drilling machine proved its value in harsh mountain disaster‑zone conditions, and the small well drilling machine helped dozens of affected families gain access to clean groundwater. This small well drilling machine showed that compact drilling gear can deliver life‑saving results during disaster response, and this small well drilling machine reshaped how the local team prepares for future natural‑disaster water emergencies.
Get Your Free Quote in 12 Hours – No Obligation
Severe Water Crisis After Colombian Earthquake
When a strong earthquake struck western Colombia, many rural towns suffered heavy infrastructure damage. Water supply pipes cracked, water towers collapsed, and mountain roads were buried under rock and mudslides. Large drilling trucks could not pass damaged mountain roads, so government bottled‑water supplies could only cover limited populations, and many scattered mountain households faced the risk of running out of safe drinking water.
This local engineering company normally provides rural well‑drilling services. After the earthquake, they were commissioned to join emergency relief work. Their mission was to drill emergency water wells for scattered mountain communities.
Before buying new equipment, they tried old‑fashioned manual drilling tools and second‑hand heavy rigs. They quickly ran into big troubles. Big drilling rigs were too bulky to travel on broken narrow mountain roads. Manual percussion drilling was extremely slow; one simple domestic well would take multiple days of hard labour. Time was extremely precious in disaster relief.
The team began researching portable drilling solutions. They compared multiple small well drilling rig models and checked small water well drilling machine offers for sale, while evaluating small borewell machine prices to balance performance and budget. Finally, they placed the order for the YG‑240‑22P small well drilling machine.
4 Critical Pain Points Of Post‑Earthquake Emergency Drilling
Before deploying the small well drilling machine, the emergency project faced four tough obstacles:
- Terrain and transport barriers: Landslides destroyed main roads. Heavy traditional drilling trucks could not reach remote mountain villages. Any emergency drilling equipment must be compact and light enough for short‑distance transfer by pickup truck.
- Extreme time pressure: In disaster zones, every day without clean drinking water brings health risks. Manual drilling could take 3‑5 days for one domestic well, which could not match emergency‑relief timelines.
- Complex local geological conditions: The earthquake zone contains mixed soil, gravel layers, and hard rock fragments. The drilling rig needs stable diesel power to pass through broken strata. Manual tools often get stuck in rock debris.
- Limited on‑site manpower: Many local skilled workers were busy with other rescue assignments. Emergency equipment needs simple operation and an automatic rod‑changing function to reduce labour requirements.
It was clear that lightweight, powerful equipment such as the small well drilling machine was required to solve all these challenges.
Why the YG‑240‑22P Small Well Drilling Machine Fits Colombia’s Emergency Relief Work
When browsing small water well drilling machines, this small well drilling machine stood out for multiple disaster‑relief‑oriented strengths:
- Ultra‑compact lightweight design: Total weight is only 200 kg, overall dimensions 1450×1550×1970 mm. It can be loaded onto ordinary pickup trucks, transported along narrow, damaged mountain roads, and moved between scattered disaster‑hit villages. This solves the biggest transport headache that large rigs cannot overcome.
- 22HP reliable diesel power: No external electric‑power supply required, very important for earthquake areas where grid power is often down. Stable power output handles mixed soil, gravel, and fractured rock layers common in seismic zones.
- Full‑automatic screw‑thread rod‑change system: Automatic drill‑rod replacement greatly cuts manual work. Operators avoid heavy physical labour pulling drill rods; fewer crew members are needed on site.
- Ample working capacity: Max drilling depth reaches 200 m, hole diameter up to 280 mm. It can drill shallow emergency domestic wells of 30‑80 m depth for disaster‑relief use, and also complete deeper permanent water wells for post‑quake reconstruction. 2.5 m lifting height and 1000 kg lifting force handle drill‑rod pulling smoothly.
- Simple field maintenance: The diesel-powered structure uses widely‑available spare parts in Latin‑American markets. In remote disaster zones, teams can complete basic inspections and repairs without professional workshop support.
Get Your Free Quote in 12 Hours – No Obligation

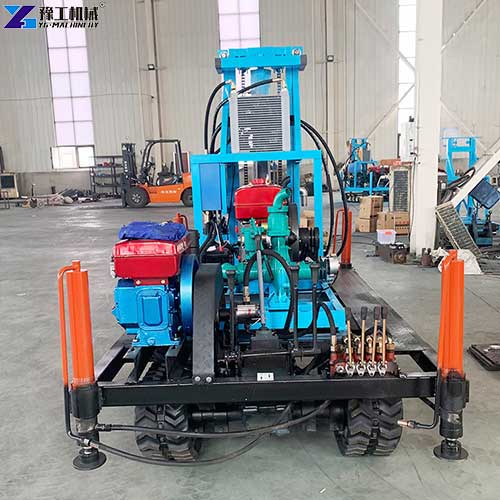

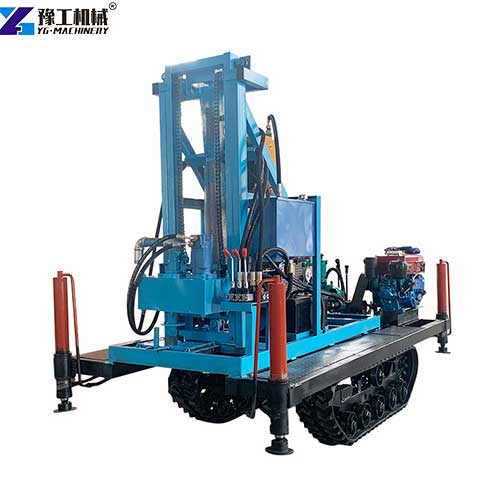

YG Small Drilling Rigs Technical Parameters
| Model | YG-240-22P | YG-240-30P |
| Dimension | 1450*1550*1970mm | 2000*1230*2090mm |
| Weight | 200kg | 200kg |
| Drill rod diameter | 42mm | 51mm |
| Drill rod length | 1.5m/unit | 1.5m/unit |
| Rod change method | Full automatic screw thread | Full automatic screw thread |
| Max drilling depth | 200m | 200m |
| Diesel engine power | 22HP | 30HP |
| Drilling hole diameter | Within 280mm | 100mm-240mm |
| Lifting height | 2.5m | Max 2.5m |
| Lifting force | 1000kg | 2000kg |
Get Your Free Quote in 12 Hours – No Obligation
On‑Site Performance Comparison: Manual Drilling VS YG‑240‑22P Small Well Drilling Machine
| Comparison Item | Traditional Manual Drilling | YG‑240‑22P small well drilling machine |
|---|---|---|
| Transport Requirement | Portable hand tools; many workers carry components | Load onto a regular pickup truck, easy mountain transfer |
| Crew Size Per Well | 4‑6 experienced drill workers | 2 trained operators |
| Time For One 60‑meter Domestic Well | 3‑5 working days | 8‑12 hours |
| Power Supply Dependence | Human physical strength | 22HP self‑contained diesel engine, no grid power needed |
| Risk Of Drill‑rod Jamming | High in fractured post‑quake strata | Lower risk, stable diesel power output |
| Work Environment Suitability | Poor for urgent disaster‑relief timeline | Perfect for emergency post‑earthquake well projects |
| Maintenance Condition | Simple, but low drilling efficiency | Convenient field maintenance, standard diesel spare parts |
Get Your Free Quote in 12 Hours – No Obligation
Genuine User Testimonial From The Colombian Project Supervisor
“After the earthquake, many mountain communities lost their tap‑water supply. Large drilling trucks could not get through landslide‑blocked roads. We researched many small well drilling rig options and checked small borewell machine prices carefully, finally purchasing the YG‑240‑22P small well drilling machine.
Its 200‑kg lightweight body is the biggest advantage for our disaster‑relief missions. We can load it on our pickup and drive right to remote villages. The 22‑horsepower diesel engine runs steadily even on broken, mixed ground after earthquakes. Full‑automatic screw‑thread rod‑change saves us huge amounts of heavy manual work. Two‑person crews can complete a domestic emergency well within one workday.
We have drilled many emergency drinking‑water wells for affected families. Seeing clean groundwater coming out of the borehole in disaster‑hit zones makes us realize how valuable this compact machine is. ”
Want to Drill a Well Quickly? Contact YG
If you are engaged in rural water‑well construction, disaster‑relief engineering, or remote‑area borehole projects and you are searching for a reliable small well drilling machine, practical small well drilling rig, cost‑effective small water well drilling machine for sale, and want to know the reasonable small borewell machine price, YG Machinery is your trusted supplier.
Our YG series small drilling rigs cover different power‑grade demands. Compact structure, self‑contained diesel power, and an automatic drill‑rod changing design adapt to rural civilian wells and emergency disaster‑relief drilling tasks. We supply complete operation manuals, remote technical guidance, and global after‑sales service support.
Contact YG Machinery right now to get your equipment quotation and solution analysis. Equip your team with flexible, compact drilling capacity, and respond quickly to both daily rural water‑supply projects and unexpected emergency‑relief assignments!
